Esteem mobility scooter specifications. esteem scooter specs. Mouse Indoor Specifications

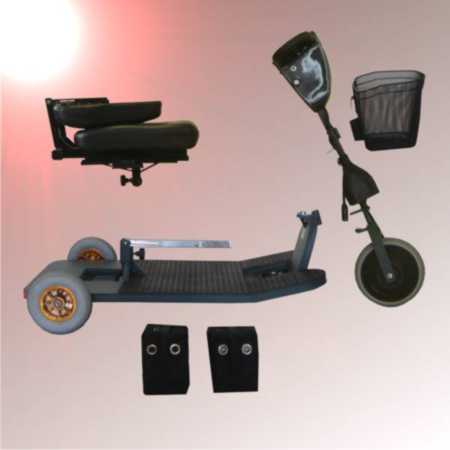

The amazing TS301 Mouse scooter is a marvel to transport. Ideal to pack in the boot of any car and transport to the shops. Ideal indoors in tight applications. Cruise ships, hotels, apartments, libraries, churches and much more. Simple click together design assembles quickly and easily. Compact lightweight pieces stow easily in most cars. Battery range and life are extended significantly. The adjustable seat and tiller give the ideal posture position. There are 3 main pieces. Seat, Rear and Tiller. Each piece weighs 7 kg or less and is easy to lift and stow. Standard batteries are 28ah Panasonic. Proven long life with exceptional range. In some instances smaller 15ah batteries weighing just a few kilos can be used.

The integrated Front wheel drive system enables the Mouse to turn in its own length. The most manoeuverable scooter design possible
Features
AGM Deep Cycle Batteries
Curtis Controller and Electronics
Manx Copper Coil Smart Charge
Hand Sewn Handlegrips
DC motor 24 volts 200watt
Range 22klm theoretical
Curtis Electronics
Integrated Front wheel drive
Battery and Status meter
World class build quality
Mouse Scooter
Performance
1 hp Transaxle
Panasonic Batteries
Range 42klm ISO
Curtis Electronics
Magnesium Chassis
Carbon Fibre
World class build
Dimensions
1160mm  Length
560mm    Width
70mm      Clearance
520mm    Track
110kg       Capacity
105kg
suggested
5kph         Speed
1 in 6        Climb Rate
Weights
5.0kg Seat
 7kg Tiller
 7kg Rear
 1.6kg Armrest
 22kg Weight
 10kg Battery
 5kg Battery
Dimensions
Length            1200mm
Width               635mm
Wheelbase     900mm
Track Front     535mm
Track rear       550mm
Clearance       125m
